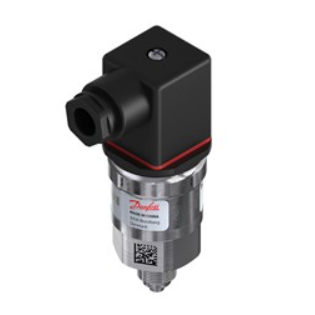

Danfoss Pressure Transmitter

Type:	Standard / With pulse-snubber
Industries	Heating / General / Marine
Sensor type	Piezo resistive / Ceramic
Accuracy	0.3%/0.5%/0.8%/1.0%/2.0%
Measuring range	0 to 0.25/1/1.6/4/6/100/400/600bar 0 to 40/250mbar 0 to 0.58/3.6/14.5/23/58/90/900/1450/6000/9000psi
Output signal	4-20mA; Ratiometric / Absolute Voltage
Medium temperature	-40/-15 to 85/100/125°C -40/5 to 185/212/257°F
Enclosure IP	IP65 / IP67
Wetted parts material	AISI 316L / Titanium Ceramic
Housing material	AISI 316L,PA6.6 / Titanium PA6.6
Edix compliant	None / Available
Marine approvals	None/Available
ATEX	None / Zone 0/Zone 2
UL Hazloc	None / Class 1,Div 2
Diagnostics / output clamping	None / Available
