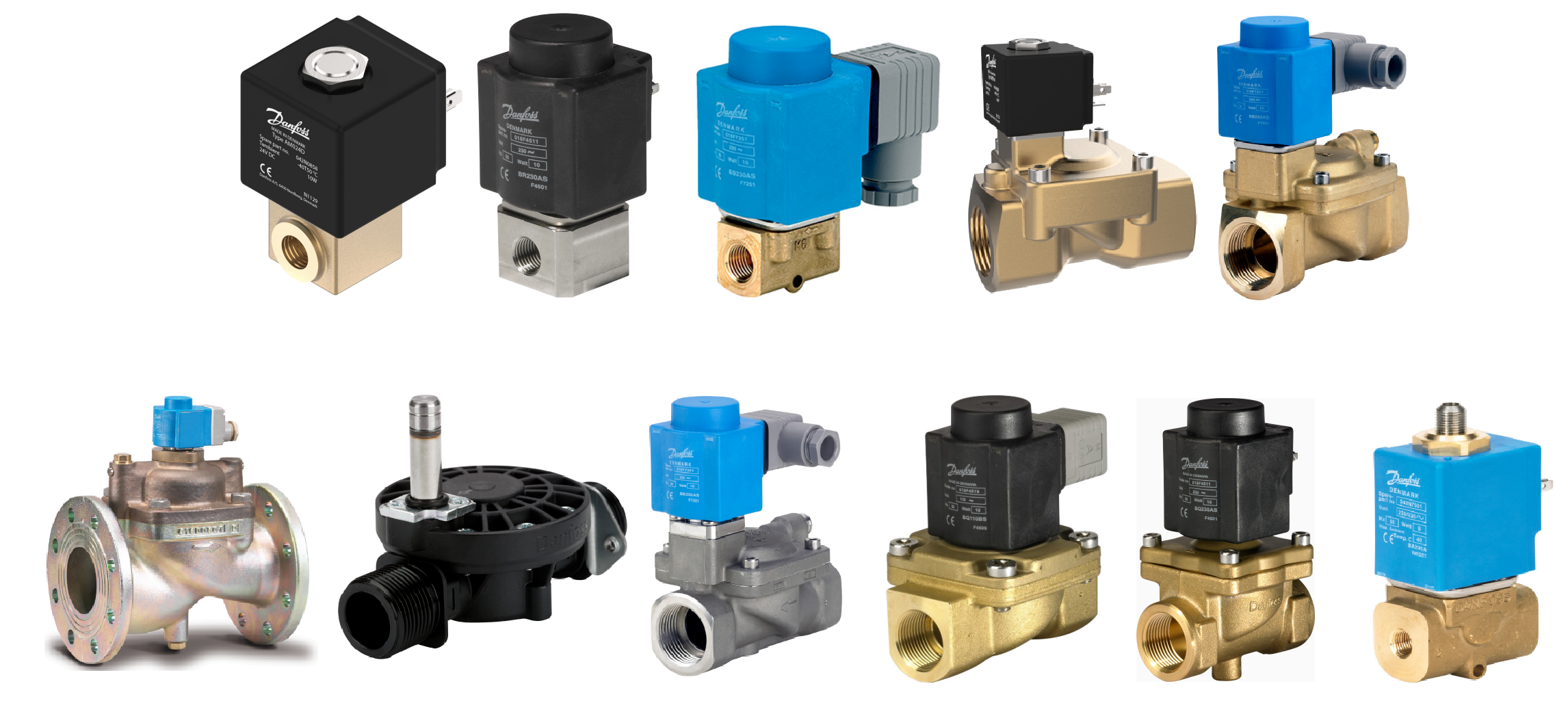

Danfoss Solenoid Valve

Type:	EV2 Direct-operated 2/2 way	EV3 Direct-operated 3/2 way
Body material	Brass / DZR brass / Eco brass / Stainless Steel / Polymer	Brass
DN(mm)	1.2-100	1.2-3
Connection	G1/8-G2 / NPSM: 3/4-14 / Flange: 2-1/2"-4" / Hose: 3/4	G1/8-G3/8 Flange: 32x32mm
Function	NC/NO/UN	NC/NO
Sealing material	EPDM/FKM/PTFE/NBR	FKM
Kv(m)3/h	0.04-130	0.04-0.8
Differential pressure range	0-30bar	0-20
Temperature range(°C)	-30-185	-10-100
Manual override (MAN)		No/Yes
