EIT LiQlyzer Pipeline Inspection Equipment

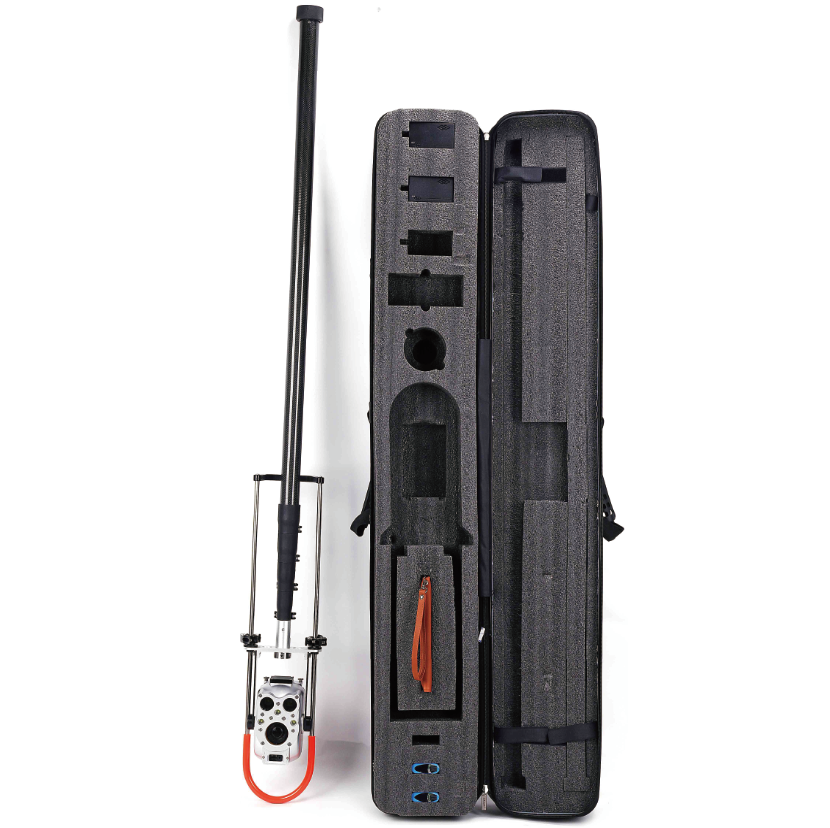

	LQWP-995 HD Wireless Periscope LQWP-995 HD wireless periscope is mainly used in municipal pipeline network or tunnels culvert fast imaging detection, in the process of detection, by manipulating the intelligent control terminal real-time recording and save the internal image of the detected object, can quickly capture, save the defect images, can be generated on-site inspection report, users can clearly understand the situation of real-time detection objects, and make the right decisions. Camera Signal Transmission Mode Wireless communication Pixel 2.14 million high pixel, day and night hd integrated machine Sensor 1/2.8"CMOS ICR Distinguish ability 1920 x 1280 Max. Resolution Min. illumination Color: 0.05lux / Black and white: 0.01Lux Camera lens 36x optical zoom, 12x digital zoom / close range: 10mm-1200mm (wide Angle - long view) Camera light High beam: 2 high light cold white LED/close light: 3 high light cold white LED Laser ranging Red laser fixed point, measuring distance 0.05-80m, measuring accuracy ±0.015m Waterproofing grade IP68 Rotation angle 360° Infinitely rotatable Battery Voltage: DC12V/capacity: 3.6Ah/Single battery life: 2.5h, standard with 3 batteries Tablet storage capacity 64GB Length of telescopic rod 1.3m when shortened, 5m when extended (customizable) Charging time of host battery 5h Applied environment Suitable for underground pipelines with diameters above 100mm
	LQPIR-996 Pipeline Inspection Robot LQPIR-996 CCTV pipeline inspection robot is a new application of engineering technology. It uses industrial pipeline camera system, continuous, real-time record of the actual situation inside the pipeline; According to the video data shot by the camera system, the technicians can determine the location of the problems in the pipeline and judge the nature of the defects, which is real-time, intuitive, accurate and forward-looking. In the aspect of environmental protection and prevention, targeted solutions are adopted to maintain drainage pipes and provide reliable technical basis for rainwater, sewage retention and prevention and control of pipeline leakage pollution. Robot Motor Six drive system, double motor imported from Switzerland, maximum power output 2000w × 2 Crawl speed Stepless adjustable, maximum speed 40m/min Lighter stand Remote control electric lifting frame can increase the height up to 180mm, suitable for different pipe diameter, no need to replace the lifting frame Waterproofing grade The basic structure is made up of water proof, water proof pressure is 2.5bar, water depth is 25m Camera Distinguish ability 15x mechanical zoom, auto/manual focus, 3 megapixels (converted from line speed) , horizontal resolution 2592 x 1520 Viewing Angle/ Sensitivity Viewing Angle: 100° / Sensitivity: 0.01LUX Camera rotation 360° in the axial direction and 180° in the radial direction Light Four bright LED headlights Waterproofing grade IP68, can be used for 10m water depth, the basic structure is made of waterproof structure, to ensure a more perfect waterproof function Electric coil car Cable tensile capacity 200Bar Length of a single test 120 Meters Wireless controller Rated capacity 5000mAh Portable battery Battery capacity 25Ah Working environment -20℃~+55℃ Applicable tube range 250-1500mm
	LQDIR-996 Duct Inspection Robot Ventilation duct detection robot, used for all kinds of air duct dust sample collection, bacteria testing, disinfection, detection of air quality. Rated voltage of whole machine 220V-240V/110V; 50Hz/60Hz Applicable duct range Height≥140mm; Width≥230mm Power 220W Crawl speed 7.5m/min Ultraviolet radiator Ultraviolet disinfection Claw to take the maximun range 0-100mm Weight 4.5kg Display size 10" HD LCD screen Length of a single test 20 meters (standard) Robot Robot power voltage 24V/50Hz Camera pexel AHD HD camera, 2 megapixels Light 4 high light LED headlights Claw lifting ability 1kg Size 440mm x 230mm x 140mm Control cabinet Memory storage capacity 64G Widing disc Cable tensile capacity 10Bar

Pipeline inspection camera is an application in water supply system, tanks and containers, natural gas, chemical pipelines, power plants and other internal and external detection is equipment instruments, usually detection objects for all kinds of pipelines. Its function is to the pipeline aging, damage degree, internal blockage, corrosion damage, internal structure analysis and a series of indicators to make a system intuitive detection judgment.

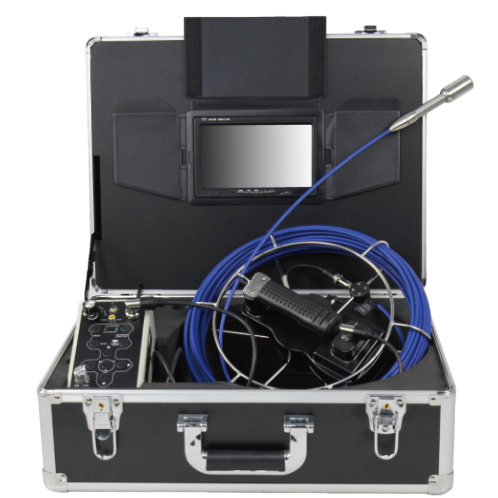

Model		LQPIC-23	LQPIC-50
Camera	Pixel	420 thousand pixels	720 thousand pixels
	Perspective	105°	90°
	The camera light	12* LED light (white) adjustable	6 bright cold white LED lights
	Waterproof level	IP68
The winding disc	The lenght of the cable	20m (Max 50m)	60m (Max 120m)
	Cable diameter	5mm	9.5mm
Control cabinet	Display size	7 inch TFT color display	9 inch TFT color display
	Size	477mm x 390mm x 180mm	520mm x 435mm x 200mm
	Memory storage capacity	8 GB SD card (maximum 256 GB) and USB flash drive
	Video format	MP4
	Continuous working time	7 hours of battery continuous working time
	Battery capacity	4400mAh
