EIT LiQlyzer Tube Cleaner Machine
Tube Cleaner Machine
Tube Cleaner is suitable for all kinds of tubes internal cleaning. The product has the stable performance. The shell adopts 304 wire drawing plate, never rust. At the same time, the product is equipped with foot switch and leakage protection power supply to ensure the construction safety. Double shafts design with one main line and the other standby line, to ensure the smooth completion of the project.
 |
 |
 |
|
| Basic Tube Cleaner Machine | Pro Tube Cleaner Machine | Multi Function Tube Cleaner Machine | |

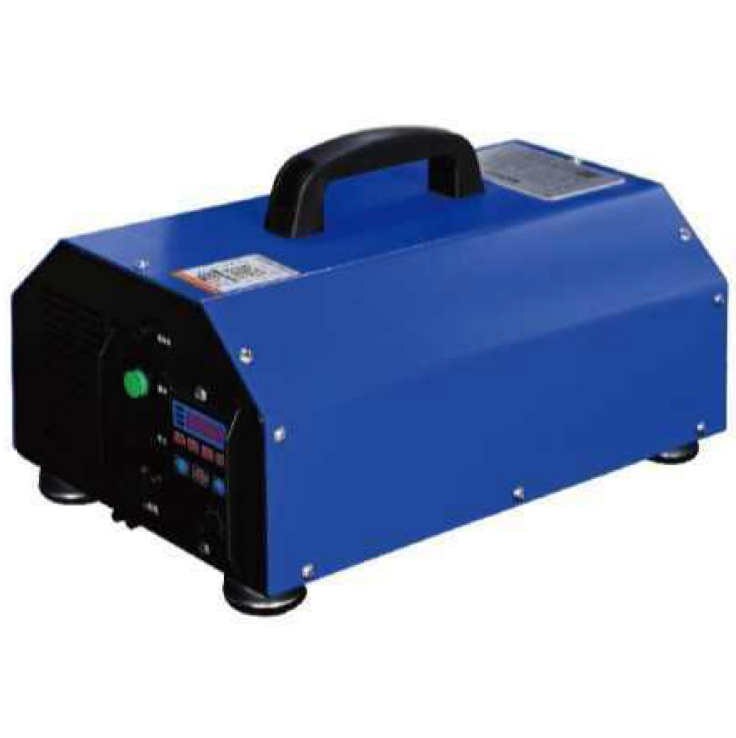

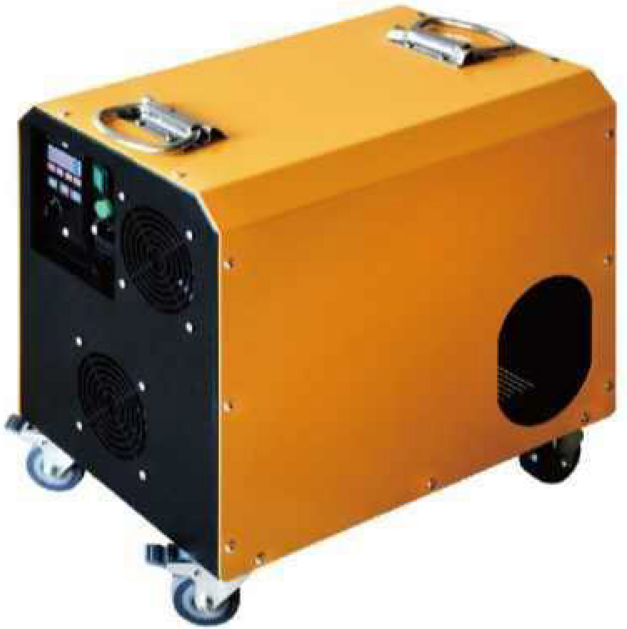

| Model | LQTCM-101 | LQTCM-208 | LQTCM-106 |
| Voltage | 220V-240V/ 110V; 50Hz/60Hz | 220V-240V/ 110V; 50Hz/60Hz | 220V-240V/ 110V; 50Hz/60Hz |
| Power | 375w | 375w | 375W (tube cleaner) + 700W (high pressure pump) |
| Brush speed | 0-1400rpm (stepless adjustment) | 900rpm | 0-1400rpm (stepless adjustment) |
| Water pressure | / | / | 80Bar |
| Water flow | / | / | 5L/min |
| Weight | 13kg | 19kg | 25kg |
| Dimension | 350*200*170mm | 355*335*185mm | 400*265*410mm |
| Water pipe | 20m (standard) | 20m (standard) | 20m (standard) |
| Flexible shaft | 1pc (6/8/10/12mm for option) | 2pc (6/8/10/12mm for option) | 2pc (6/8/10/12mm for option) |
| Brush | 10pcs (6.5-25.4mm for option) | 10pcs (6.5-25.4mm for option) | 10pcs (12.7-25.4mm for option) |
| Applicable tube range | ￠6.35- ￠25.4mm | ￠6.35- ￠25.4mm | ￠6.35- ￠25.4mm |
| Function | Basic model, easy to operate and use | Professional model, stable and reliable | Multi-function model, tube cleaner with high pressure cleaning |
 |
 |
||
| High Configuration Tube Cleaner Machine | Double-Shaft Efficiency Tube Cleaner Machine | ||
| Model | LQTCM-202 | LQTCM-203 | |
| Voltage | 220V-240V/110V; 50Hz/60Hz | 220V-240V/110V; 50Hz/60Hz | |
| Power | 550W | 1500W | |
| Brush speed | 0-1400rpm | 0-1400rpm | |
| Water pressure | / | / | |
| Water flow | / | / | |
| Weight | 27.5kg | 49kg | |
| Dimension | 400*225*405mm | 540*335*1045mm | |
| Water pipe | 20m(standard) | 20m(standard) | |
| Flexible shaft | 2pcs (6/8/10/12mm for option) | 2pcs (6/8/10/12mm for option) | |
| Brush | 10pcs (various sizes for option) | 10pcs (6.5-25.4mm for option) | |
| Applicable tube range | ￠6.35- ￠25.4mm | ￠6.35- ￠200mm | |
| Function | High configuration model, dual control lines, wear-resistant shaft | Double-shaft design, for numerous tubes, tight construction schedule, more efficient cleaning |
