EIT LiQlyzer Ion Meter
 LQION-T40AC |
 LQION-T60AC |
|
| Range: 0.01mg/L-40000mg/L | ||
| Communication: 4-20mA RS485 ModbusRTU | ||
| Working Condition: 0-60°C | ||
| Power Supply: 240VAC | ||
| Installation: Panel/ Wall mounted/ Pipeline | ||
| Ion Type: Fluoride; Ammonia; Hardness(Calcium);Chloride;Nitrate;Potassium;Ammonium | ||
| Sensor Connection: 3/4NPT Male Thread | ||
| Sensor Temperature Compensation: PT100 ; PT1000 ; 2.252K ; 10K | ||
| pH Range: 2-12pH | ||
| Model | LQION-T40AC | LQION-T60AC |
| Accuracy | ±3%FS | ±1%FS |
| Relay control contacts | 3A 250VAC, 3A 30VDC | 5A 240VAC, 5A 28VDC, 120VAC |
| Protection | IP54 | IP65 |
| Dimension | 96*96*135(mm) | 144*144*107(mm) |
| Hole Size | 92.5*92.5(mm) | 138*138(mm) |
| Other Functions | - | Data record &Curve display |

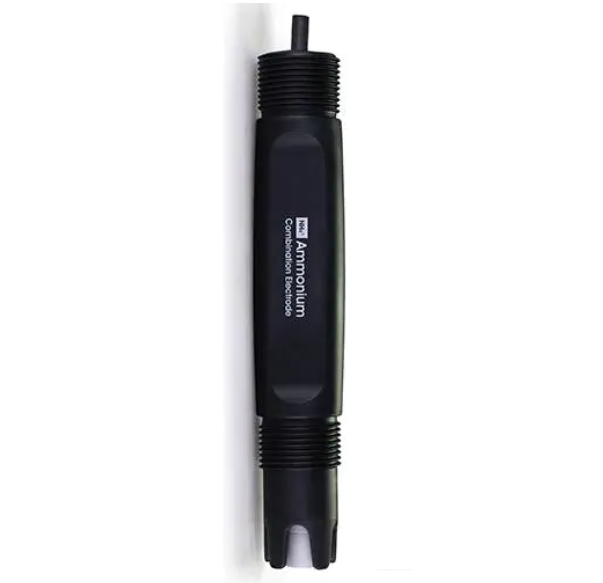

EIT LiQlyzer Ion Sensor
 |
| Model | SION6710 | SION6714 | SION6718 | SION6711 | SION6720 | SION6712 | SION6711 |
| Selective Electrode | Fluoride | Ammonium | Hardness (Calcium) | Chloride | Nitrate | Potassium | Ammonia |
| Measuring Range | 0.02~2000mg/L | 0.01~10000mg/L | 0.2~40000mg/L | 1.8~35500mg/L | 0.5~10000mg/L | 0.5~10000mg/L | 0.1~1000mg/L |
| Housing Material | pp | ||||||
| pH range | 2-12pH | ||||||
| Accuracy | ±2.5% | ||||||
| Pressure Range | ≤0.3Mpa | ||||||
| Temperature Compensation | PT1000 | ||||||
| Temperature Range | 0-50℃ | ||||||
| Installation Thread | NPT3/4" | ||||||
| Cable Length | 10m cable, can be extended to 100m | ||||||
