EIT LiQlyzer Orp Meter
 LQPH-T30AC |
 LQPH-T40AC |
 LQPH-T60AC |
| Range: -1999~+1999mV | ||
| Communication: 4-20mA RS485 ModbusRTU | ||
| Working Condition: 0-60℃ | ||
| Power Supply: 240VAC | ||
| Installation: Panel/ Wall mounted/ Pipeline | ||
| Model | LQPH-T30AC/T40AC | LQPH-T60AC |
| Accuracy | ±3%FS | ±1%FS |
| Relay control contacts | 3A 250VAC, 3A 30VDC | 5A 240VAC, 5A 28VDC, 120VAC |
| Protection | IP54 | IP65 |
| Dimension | 96*96*135(mm) | 144*144*107(mm) |
| Hole Size | 92.5*92.5(mm) | 138*138(mm) |
| Other Functions | - | Data record &Curve display |

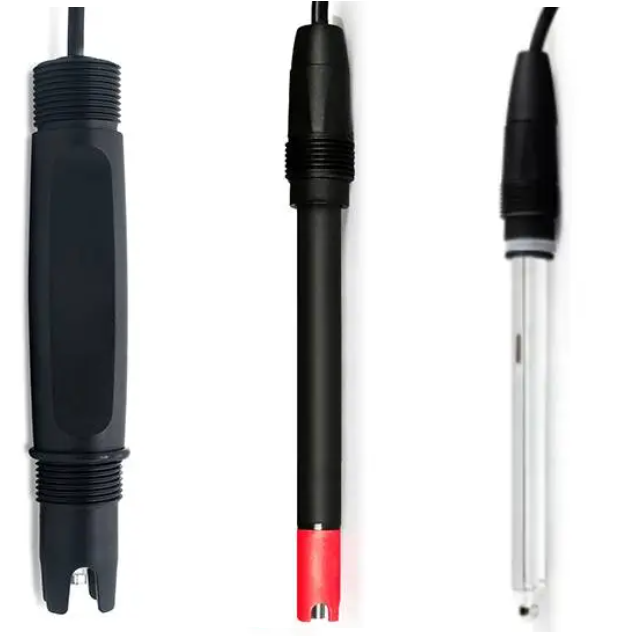

EIT LiQlyzer Orp Sensor
 |
| Model | SORP2700 | SORP2701 | SORP2543 | SORP2668 | SORP2733 | SORP2768 |
| Measure Material | GF | Pt | Pt (SNEX) | |||
| Housing Material | PA | Glass | PP | |||
| Measuring Range | ±1000mV | |||||
| Accuracy | ±3mV | |||||
| Pressure Range | ≤0.6Mpa | |||||
| Temperature Compensation | None | PT1000 | ||||
| Temperature Range /td> | 0-50℃ | |||||
| Installation Thread | NPT3/4” | PG13.5 | NPT3/4” | |||
| Cable Length | Standard 10M can be extended to 100M | |||||
| Application | General | General Chemical | Hydrofluoric acid environment | General | Viscous fluids, protein environment, silicate, chromate, cyanide, NaOH, seawater, brine, petrochemical, natural gas liquids, high-pressure environment | |
