EIT LiQlyzer Turbidity Meter
Turbidity is the particles that are generally Unobservable with naked eye. Turbidity is one of most important parameter for determine the clean level of water
How we measure turbidity
ISO 7027 provides the method in water quality for the determination of turbidity. It is used to determine the concentration of suspended particles in a sample of water by measuring the incident light scattered at right angles from the sample.
How we choose turbidity meter
1. Understand your application & process range
2. Need for continuous measuring or not
3. Need what kind of signal output

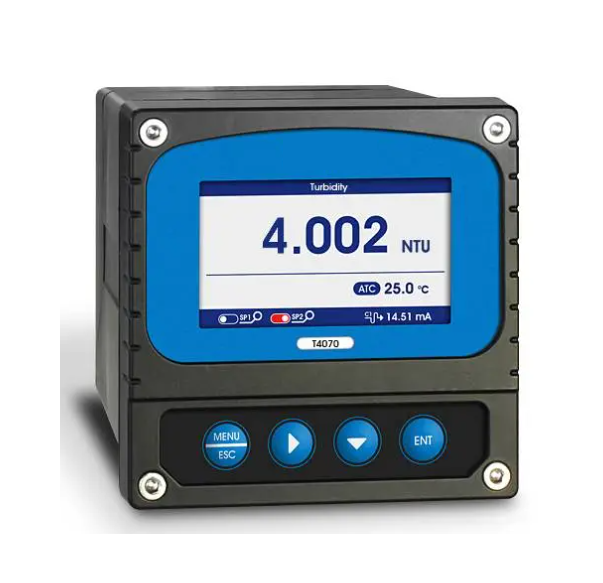

 LQTB-T40AC |
 LQTB-T60AC |
 |
| Range: 0-20NTU ; 0-400NTU; 0-4000NTU | ||
| Communication: 4-20mA RS485 ModbusRTU | ||
| Working Condition: 0-60°C | ||
| Power Supply: 240VAC | ||
| Installation: Panel/ Wall mounted/ Pipeline | ||
| Model | LQTB-T40AC | LQTB-T60AC |
| Accuracy | ±3%FS | ±1%FS |
| Relay control contacts | 3A 250VAC, 3A 30VDC | 5A 240VAC, 5A 28VDC, 120VAC |
| Protection | IP54 | IP65 |
| Dimension | 96*96*135(mm) | 144*144*107(mm) |
| Hole Size | 92.5*92.5(mm) | 138*138(mm) |
| Other Functions | - | Data record &Curve display |
