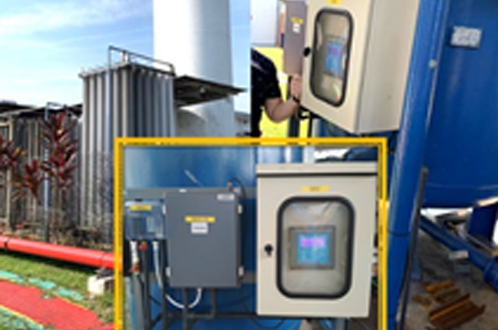

Waste Water Treatment Plant, Malaysia

This waste water treatment plant contains pH, conductivity, dissolved oxygen and turbidity meter. Model PHG-1901 Industrial pH Meter ECG-1903 Industrial Conductivity Meter DOG-1902 Industrial Dissolved Oxygen (DO) Meter ZDG-1910 Online Turbidity Meter

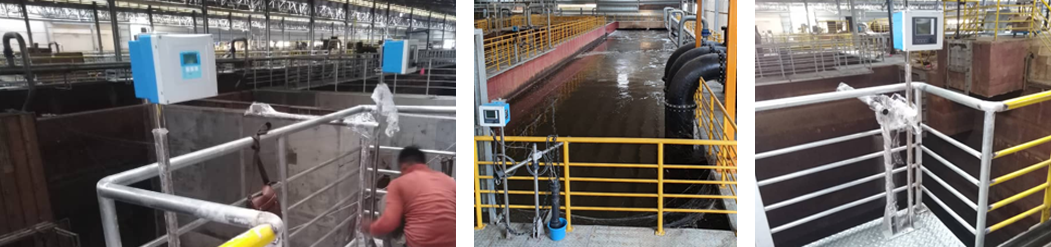

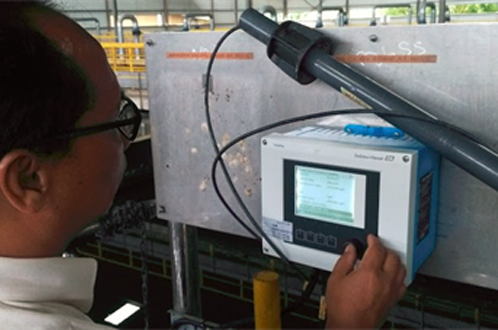

Sewage Treatment Plant Analyzers, Malaysia

Supply, Install, testing and commissioning of analysers for Sewage Treatment Plants. Instruments as below Dissolved Oxygen Meter, Ammonia Meter, pH Meter MLSS Meter. Ultrasonic Level Meter include all SS304 mounting brackets

Industrial Waste Water Treatment

1.Basic purpose of a Sewage Treatment Plant
Remove sludge and precipitate out phosphates via chemical addition in primary clarification (e.g. Polymer, alum, ferric chloride)
Remove ammonium present in human waste through activated aeration (“the bugs”)…… NH4+ ------> NO3- Remove the NO3- in the anaerobic stage…. NO3- -----> N2 + O2 (Nitrogen gas to environment).
In result: Reduction of total nitrogen
Remove of organic materials. Oxidization into CO2.
In result: Reduction of total organic carbon

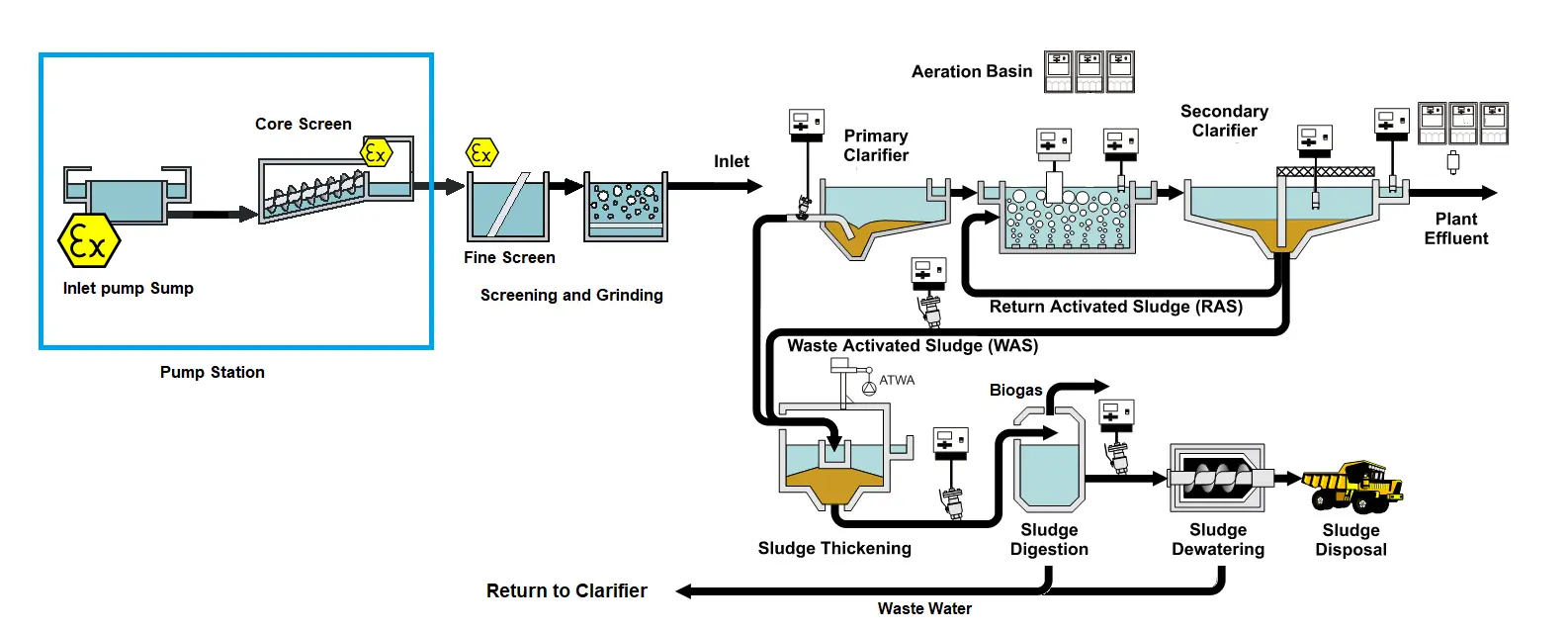

2.Typical Sewage Treatment Plant Design

3.Secondary Clarifier

Sludge level blanket
Detects a sludge overflow earlier than an effluent turbidity monitor.
Automates the discharge of waste activated sludge (WAS) based on the sludge blanket level.
Insures that a low concentration sludge with is not pumped to the biosolids stage.
Insures that there is always enough biomass to meet the changing demands of the plant
Allows sludge profiling
Effluent control parameter monitoring
Flow
pH
Turbidity
Ammonium COD/TOC
Auto Sampler, for further lab test
